KT-S860 4-Axis CNC Machine attended project of Guangzhou Baiyun Airport Terminal 2

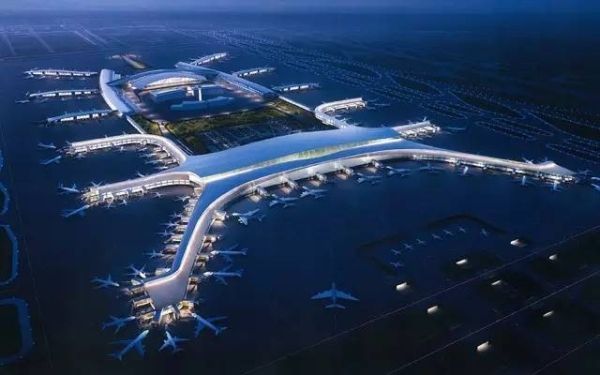

The new terminal T2 of Guangzhou Baiyun Airport goes in service from 26 April 2018. The terminal building is about 658,7000 square meters, comprehensive transportation center is about 222,000 square meters. The passenger capacity can reach 45,000,000 per year.

Our machine KT-S860 4-Axis CNC Machining Center is very honor to attend this amazing project. KT-S860 is suitable used for milling ,drilling ,cutting on aluminum alloy profiles, PVC, light alloy profiles. It can completed -110°--1+110° processing after one loading , and also with Siemens 828D CNC system, HSD Italian spindle, to make sure the high precision and efficiency.

Item					unit			Data
Processing size		X-axis			mm			8500
		Y-axis (3-axis)			mm			650
		Y-axis (4-axis)			mm			600
		Z-aixs			mm			500
		A-axis angle range			︒			-110︒-  +110︒
Processing precision		Positionning			mm			±0.1
		Re-positioning			mm			±0.02
		Extent of prependcicularity			mm/mm			0.1/100
		Rough			mm			0.1
		Extent of circularity			um			Ra 12.5 um
Feeding speed		X-axis			m/min			70
		Y-axis			m/min			40
		Z-axis			m/min			40
		A-axis			r/min			102
Tool magazine		Tool quantity			6-position			ISO30
		Blade change time			s			8
collet		Max. Diameter			mm			Ø 16
Main spindle (Italian HSD)		Power /rotary speed			KW /rpm			7.5/24000
Servo motor (Siemens)		X			KW			3.3
		Y			KW			2.3
		Z			KW			3.3
		A			W			850
Voltage /Power supply					Total			380V 50HZ/10KW
Overall dimension of machine					mm			11300×2500×3200 mm
Overall dimension of electrical box					mm			600x1400x1800
Power source		Power			KVA			20
		Air pressure			Kg/cm2			6～8
air pressure	0.8MPa 0.2m3/min		tool size	ф3mm～ф16mm		weight	6500kg		size	a)11500 b)2500 c)2800

testing profile on KT-333K Corner Crimping Machine

Testing customer's profile, and adjust well the position of bump fork, innner block of corner crimping machine, so that customer no need to take too much time to adjust the machine. Corner crimping machine is the most difficult machine for aluminum window production line, operate the machine is easy, but adjust well the position to fit the profile is not easy for new user. If you are interested in our machine, pls contact Shirley Han shirleyhan0808@foxmail.com

KT-383FC CNC Double Mitre Saw for aluminum window (cutting 45 and 90 degree angle)

KT-383FC is similar with KT-383FB, KT-383FC is also with 45 and 90 degree cuting angle, Italian motor, 4500mm cutting length, blade also come out from back to front. The different is KT-383FC is with 500mm saw blade, Japan Panasonic NC system which make profile feeding automatically. KT-383FB is with 550mm saw blade, profile feeding manually. Whatsapp 008613824544753

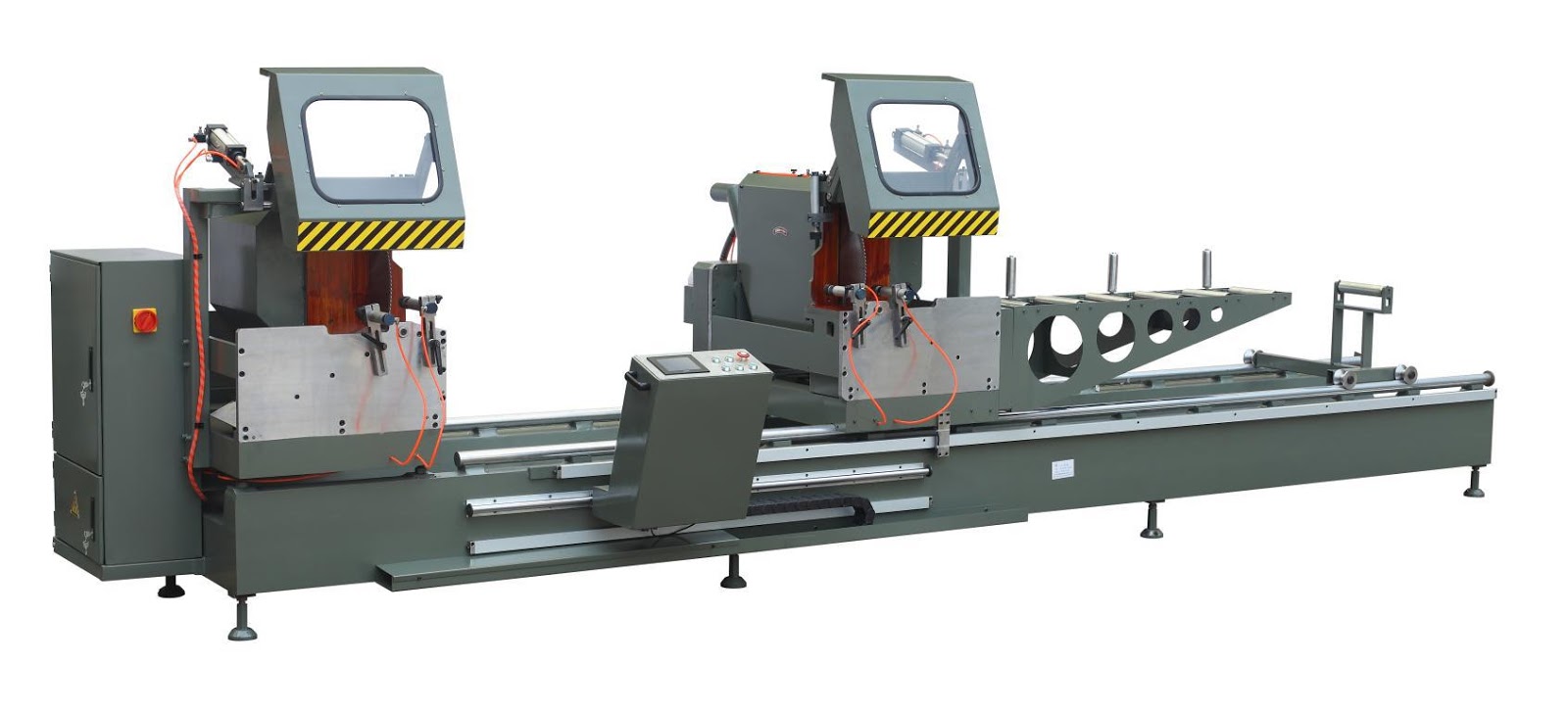

KT-383FC CNC Double Head Cutting Machine for aluminum window

It is mainly used in the aluminum alloy curtain wall material, cutting material plan of window material, also available in cutting material plan or plastic profile. By using hard alloy saw blade, the outer diameter is 20″, Both its line speed and processing precision are high. When the machine bed works, the blades of double-head saws can carry on cutting simultaneously or separately. The saw blades cut 45° and 90°. In this machine bed, Japanese Panasonic NC system and feedback system of German ELGO original assemble, whose positioning precision is high, repeating positioning precision is about ±0.1 mm, Italy original assemble motor, whose cutting precision is high, and its stability is good, so they are more suitable for cutting at any angle for aluminum door and window and aluminum curtain wall material.

MAIN TECHNIQUE PARAMETER

1.	Saw cutting length	420(90°)-4500mm
2.	Saw cutting (W×H)	135 x 260mm
3.	Main motor power	2.2kw x 2
4.	Main motor rotation speed	2850 rpm
5.	Saw blade dimension	ø500 x ø 30 x 120T
6.	Swing angle of saw blade	45° and 90°
7.	Saw blade feeding speed	0~3m/min
8.	Saw blade retracting speed	2~3m/min
9.	Operation air pressure	0.6~0.8Mpa
10.	Overall dimension(L×W×H)	7500 x 1700 x 1750mm
11.	Weight	2100kg
